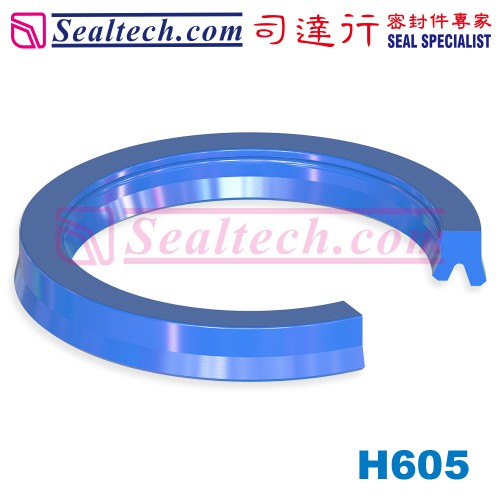

H605 is a twin lip rod seal made of Hythane 181®. The design and material provide consistent performance and easy installing.
H605雙唇拉杆封的材料是聚氨酯Hythane 181®,其設計及材料特性提供穩固的密封效能和易於安裝。
| |||||||||||||||
Material 主密封材料 | Power-transmission fluid 傳動媒體 | Temperature 溫度範圍℃ | Speed 速度 | Pressure 工作壓力 | Max. Gap F 最大擠出間隙 | ||||||||||
Hythane 181® Polyurethane 聚氨酯 | Mineral Oil 礦物油 | -45 | - | +110 | ≦ | 160 bar | F ≦ | ||||||||
HFC Water Glycol 水乙二醇 | -30 | - | +60 |
| 250 bar | F ≦ | |||||||||
HFA 5/95 Water base fluid, Water水基傳動液 / 水 | +5 | - | +60 |
| 400 bar | F ≦ | |||||||||
|
|
|
|
|
| ||||||||||
| |||||||||||||||
Chamfers & Rad 倒角與圓弧 (mm) | Tolerance 公差 | Surface Finishing表面光潔度 | |||||||||||||
S ≦ | 4 | 5 | 7.5 | 10 | 12.5 | 15 | μm Ra | μm Rt | |||||||
C ≧ | 3 | 3.5 | 5 | 6.5 | 7 | 8 | Æd1 | f9 | 0.4-0.8 | ≦ 4 | |||||
r1 ≦ | 0.2 | 0.4 | 0.8 | 0.8 | 1.2 | 1.6 | ÆD1 | Js11 | ≦ 1.6 | ≦10 | |||||
r2 ≦ | 0.4 | 0.8 | 1.2 | 1.2 | 1.6 | 2.4 | L | +0.25 0 | ≦ 3.2 | ≦16 | |||||
編 號 Part No. | 內 徑 Æd1 | 外 徑 ÆD1 | 高 度 H | 槽 寬 L |
4790600 | 6 | 15 | 7.3 |
H605
|
